090-140002-003
The Microchip TimeProvider® 4100 w 1/10G Exp Rubidium server is a best-in-class 1588 grandmaster complemented by extensive port fan-out for PTP, Network Time Protocol (NTP), SyncE, and legacy Building Integrated Timing Supplies (BITS). With multiple ports for current, legacy and future networks that can be connected to multiple base stations for 4G and 5G deployments, the device is a cost-effective solution that can be easily adapted for a wide variety of use cases. See other models.

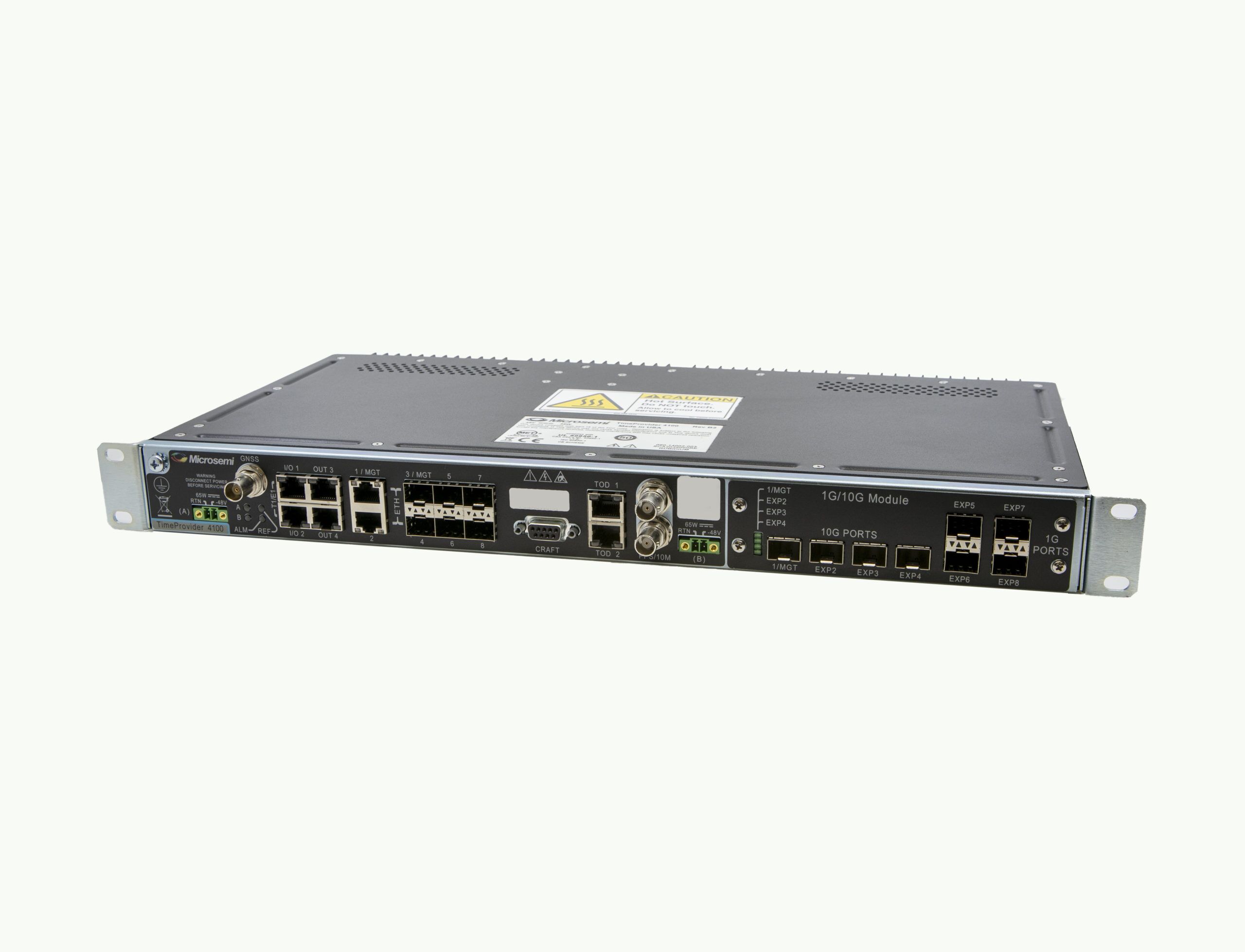

TimeProvider® 4100 w 1/10G Exp Rubidium
2.3 Version Highlights:
• Revised E1/T1 expansion module with Composite Clock (CC) and Japan Composite Clock (JCC)
• Precision Time Protocol (PTP) enhancements with higher capacity up to 1,000 clients, dual PTP Server profiles per port
• Enhanced resiliency with multiple PTP inputs and IEEE 1588 2.1 2019 majority vote with enhanced Assisted Partial Time Support (APTS)
• Security enhancements with Authentication, Authorization and Accounting (AAA) support, two-factor authentication and IEEE® 1588-2019 security prongs
• Enhanced performance withTimePictra® Synchronization Management System for status and configuration support
• Enhanced Frequency monitoring with TIE, MTIE and TDEV with configurable masks and standard masks
• Redundancy mode is added to ePRTC operation-mode to bring additional resiliency
Benefits
- Flexibility to leverage legacy and new investment
- Mitigates impact of backhaul noise, packet delay variation and asymmetry
- High-accuracy phase distribution over long-haul optical networks
- Preserves current Multiprotocol Label Switching (MPLS) network engineering
Microchip TimeProvider® 4100 w 1/10G Exp Rubidium Exp – Key Features
• IEEE 1588 v2 PTP grandmaster
• Redundancy via software mechanism using two units with health monitoring of active and standby devices
• Synchronous Ethernet (SyncE) including enhanced ESMC and eEEC G.8262.1
• Global Navigation Satellite System (GNSS) with multi-constellation support (Global Positioning System (GPS), Globalnaya Navigazionnaya Sputnikovaya Sistema (GLONASS), BeiDou Navigation Satellite System (BDS), Quasi-Zenith Satellite System (QZSS) and Galileo) and Satellite-based Augmentation System (SBAS) support
• GNSS with multi-band L1/L2/E5B support
• Primary Reference Time Clock (PRTC) Class A (100 ns) and Class B (40 ns)
• Enhanced PRTC (ePRTC) ITU-T G.8272.1, 30 ns accuracy
• Reliable fanless passive thermal operation
• Oscillator options: mini oven-controlled crystal oscillator (OCXO), OCXO, super OCXO and Rubidium (Rb)
• IPv6/IPv4 on all ports including Management (OAM)
• Standard base unit with eight Ethernet ports, four E1/T1 ports, one craft port, two 1 PPS/ToD ports, two 1 PPS/10 MHz ports
• Optional internal expansion module with 16 E1/T1ports for a total of 20 E1/ T1 outputs per unit with support for composite clock including Japan format
• Optional internal expansion module with four small form-factor pluggable (SFP) and four enhanced small form-factor pluggable (SFP+) for 10 GbE support, 100 Mbps Fast Ethernet and 1 GbE fanout
• Support for multiple IEEE 1588 v2 profiles per unit and per port
• Support of Inband management with PTP Services. Device management, PTP Server, and PTP client on the same
physical port to save cost
• Support for high-performance multidomain boundary clock with class C and D accuracy (operation modes)
• High performance: 1,000 PTP unicast clients at max profile rate of 128 PPS and NTP reflector (NTPr) 20,000 tps per
port, for a total of 160,000 tps per unit and NTPd at 500 tps on three ports for a total of 1,500 tps per unit
• Fully supports ITU-T profiles for frequency, time and phase synchronization: G.8265.1, G.8275.1, and G.8275.2
• Fully supports other legacy and enterprise PTP profiles: Telecom-2008 and Default. L2, IPv4, and IPv6
• ITU-T G.8273.4 APTS with patented enhanced automatic asymmetry compensation (AAC) over multiple
network variations with multiple PTP client inputs and majority vote mechanism
• Security via enhanced SSH and Terminal Access Controller Access-Control System (TACACS+), Remote Authentication DialIn User Service (RADIUS), authentication, authorization and accounting (AAA)
• Radius two-factor authentication
• IEEE 1588 2.1 2019 security support for prong C (architecture guidance) and prong D (monitoring and management)
• Monitoring and measurement capabilities for phase (PTP) and legacy ports
• TimePictra synchronization management system support
