TimeSource 3500 Plug-In Shelf
TimeSource 3500 Plug-In Shelf
Legacy GNSS-based PRS platforms used as primary reference sources for network timing.
Manufacturer:Symmetricom
Associated part numbers: 990-72010-01, 990-72010-06, 990-72010-07, 990-72020-01, 990-72020-06, 990-72050-01, 990-72050-06, 990-72050-07, 990-72060-01, 990-72060-06
Recommended replacement: TP4100 or TP4500
Why replace it?: Spare cards and platform components are increasingly difficult to source, and modernization improves supportability and security posture.
Note: The TimeSource 2000 series was discontinued in 2014 as well.
Syncworks warehouses and ships Microchip products and retired sync and timing equipment. Symmetricom, Telecom Systems, Datum, Microsemi, and more. Our Field Services team will install and enable your antenna kit. Our SyncCare will provide peace of mind in the event of any issues.
$2,523.00
Learn About Our TimeSource 3500 Plug-In Shelf

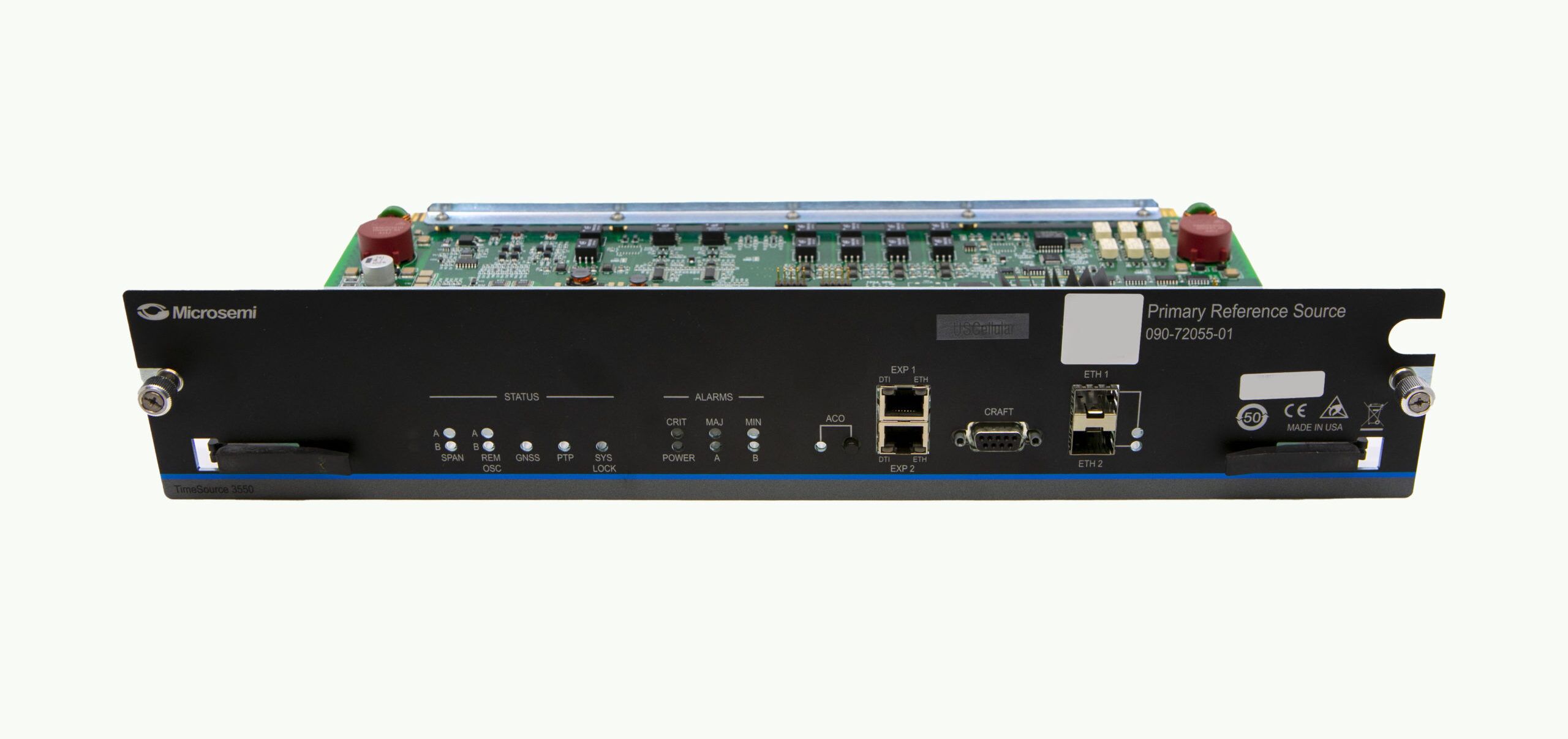

TimeSource® 3550 Plug-In Shelf Part # 090-72050-01
TimeSource® 3550 consists of single-unit modules that plug into a rack-mounted shelf. The TimeSource 3550 modules may be used in previously
supplied shelves of TimeSource 3000, 3100, 3500, and 3600 products. The Microchip TimeSource 3550 is a standalone Primary Reference Source
(PRS) product that operates with an external high-precision GPS timing antenna to meet GR-2830 and EN 300 462-6-1 requirements. Output ports are software configurable for T1,
E1, 2.048 MHz or composite clock to support frequency timing applications. The TimeSource 3550 incorporates a rubidium Miniature Atomic Clock (MAC)
for extended holdover performance.
- Description: TS3550 2x T1/E1 plug-in spare
- Manufacturer Part # 090-72050-01
Key Features
• Advanced multi-input clock engine
• High precision timing antenna with
integrated GPS receiver
• Up to 1000-foot antenna cabling with automatic delay compensation
• Timing accuracy of 100 ns when locked to GPS
• Rubidium holdover
• T1, E1, 2.048 MHz, and 10 MHz inputs and outputs
• 1 PPS and TOD output ports
• Sync status messaging on E1/T1 ports
• Integrated sync monitoring of input ports
• Optional SNTP server
• NEBS Level 3 compliant
• Low power consumption
• Direct Digital Synthesis (DDS) technology
Product Highlights
• PRS compliant, traceable GPS time reference
• Advanced clock algorithms and holdover capabilities for high accuracy and reliable performance
• Versatile input options to complement and backup the GPS reference
• Deployable in existing TimeSource shelves
