Grandmaster Solution for E1/T1/CC signals (3rd Generation BITS/SSU)
Modernize BITS SSU Legacy Equipment
In an era where timing systems must bridge legacy TDM frequency requirements and next-generation packet networks, intelligent distribution solutions become crucial. Our Synworks Expansion Panels (SXP) complement 3rd Generation BITS deployments, sensible extending robust timing services across your infrastructure.
As networks face increasing GPS vulnerabilities and demanding 5G requirements, our distribution solution SXP helps to modernize and harden your synchronization architecture while maintaining the flexibility to scale.

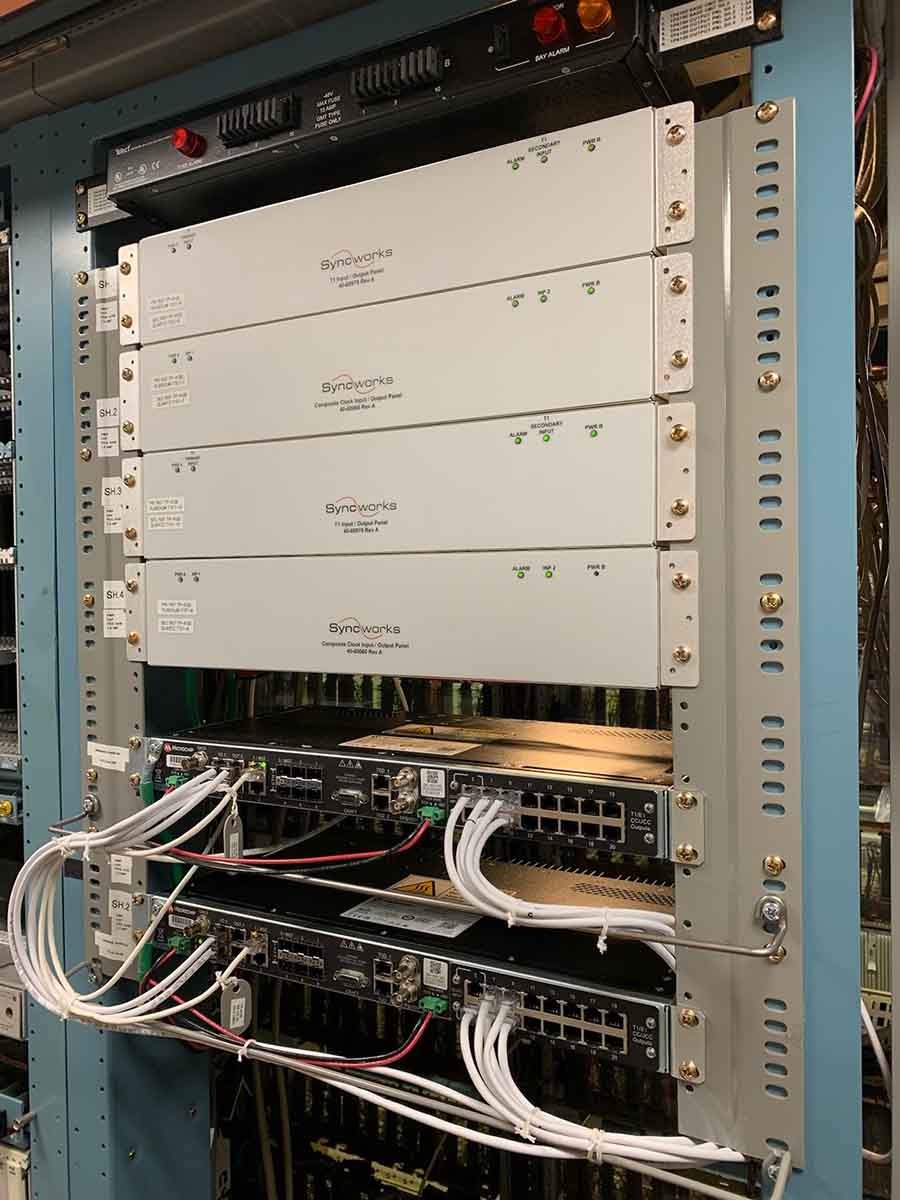

Above are four Syncworks Expansion Panels with 20 outputs each and two TimeProvider 4100s.
Solution Overview
Our expansion panels seamlessly integrate with 3rd Generation BITS, multiplying available outputs while supporting both legacy TDM systems and packet-based timing distribution. This sustainable, future-proof approach ensures your timing network can evolve alongside your service requirements.
Key Capabilities
- Multiple expansion shelf support for scalable deployment
- Built-in redundancy features for mission-critical applications
- Streamlined management through 3rd Generation BITS:
- Intuitive configuration options
- Real-time status visibility
- Comprehensive alarm management
Technical Features
- Hot-swappable distribution modules for minimal service impact
- Industry-standard connectors supporting diverse legacy systems
- Modular expansion architecture
- Flexible output configurations supporting:
- E1/T1 timing signals
- Composite clock distribution
- Multiple output banks
Value Proposition
- Cost-effective scaling of timing distribution
- Preservation of existing timing investments
- Hardened synchronization architecture
- Support for 5G-ready timing requirements
- High-availability design
- Future-proof infrastructure flexibility
Get A Quote
Point-of-Presence (PoP) Solutions
Space-constrained ISP environments and IXC termination points require efficient timing solutions. Our compact distribution panels excel in these environments, delivering up to 20 outputs from a single card while minimizing rack space requirements. This makes them ideal for:
- Local Internet Service Provider access points
- Interexchange Carrier connection sites
- Local Access Transport Area (LATA) facilities
BITS/SSU Modernization Options
Complete Infrastructure Replacement
Transform your timing infrastructure through our comprehensive modernization approach:
- Full replacement of legacy BITS/SSU equipment
- Streamlined central office space utilization
- Modern timing distribution architecture
- Phased implementation to minimize service impact
Hybrid Migration Strategy
Optimize costs and minimize disruption with our flexible migration path:
- Retain existing patch panels and wire-wrap infrastructure
- Gradual decommissioning of legacy equipment
- Preserve existing network element connections
- Reduce implementation time and expenses
Primary Reference Source Integration
Our distribution solutions integrate seamlessly with modern PRS implementations:
- Support for ITU-T G.811, G.812, and G.8272 PRTC standards
- SNTP timing service compatibility
- Multiple T1 output support
- Built-in GPS validation capabilities
- PTP backup with APTS functionality
Features

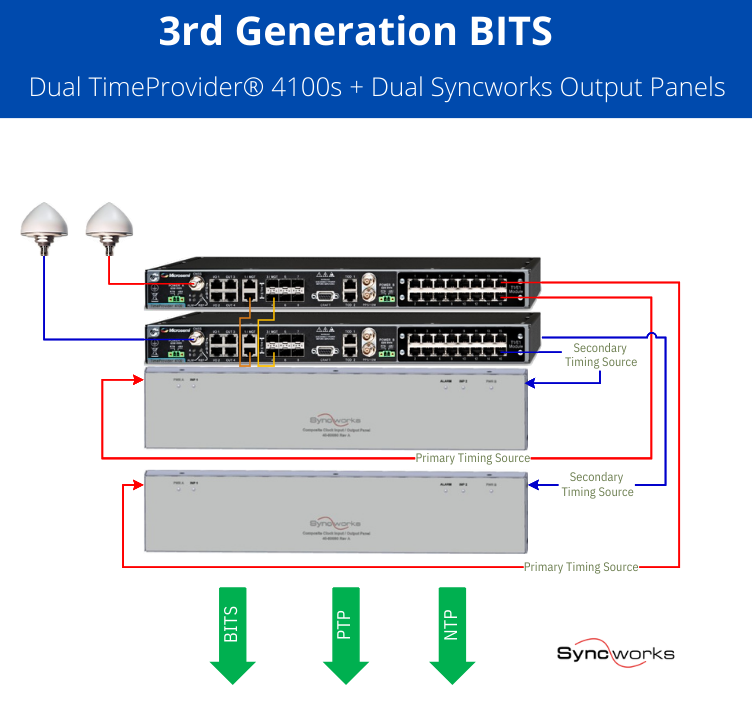

Dual Microchip TimeProvider 4100s
Multiband GPS inputs supported
20 cc/DS1 additional outputs per panel
PTP, NTP, BITS, ToD, 1pps, 10 Mhz outputs
MAC Rubidium timekeeping performance
Benefits
Mitigate GPS vulnerabilities
Resiliency and reliability
Packet-timing ready
BITS Technology – Generations One & Two
1st Generation BITS met the needs for the telecom industry’s rising importance in a world where communication needed to be faster and more reliable.
Many of these early systems are still in use today. These workhorses were solidly built but lacking the scalability features required for modern telecom networks.
2nd Generation BITS was an improvement that added remote connectivity and management plus software upgrade functionality along with these products:
- TimeProvider 1100 – seen below
- SSU 2000
- TimeHub 5500
