TimeProvider® 4100 GPS Antenna Kit


TimeProvider® 4100/S6xO Antenna Kit

Featuring the TW3370 / TW3372 GPS/GNSS Antenna

TW3370/TW3372 40dB Data sheet

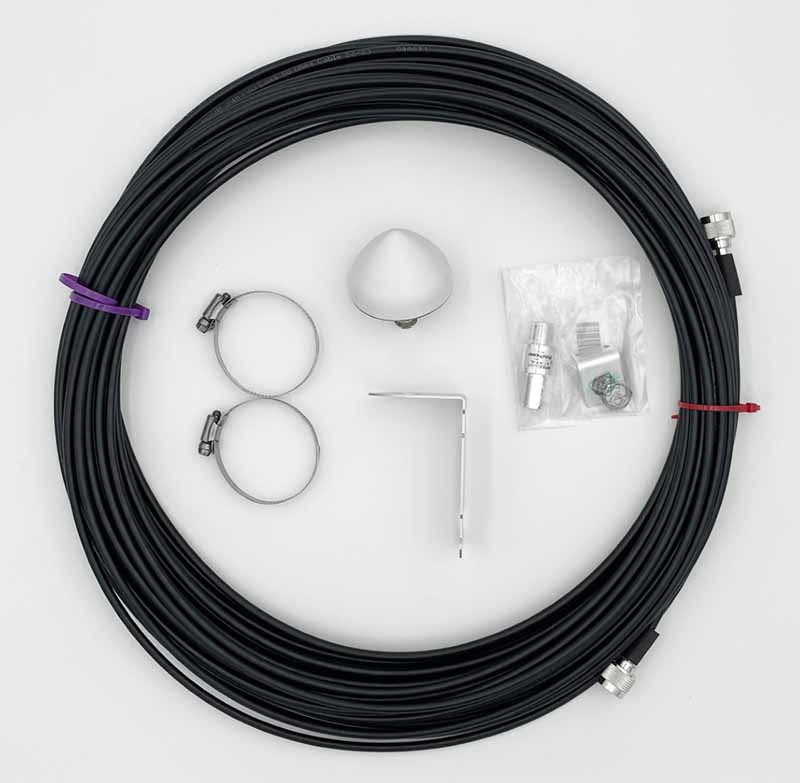

GPS/GNSS antenna kits for Microchip TimeProvider 4100/S6x0 includes:

  • Antenna
  • Bracket
  • Coaxial cable
  • Coaxial cable lengths available 75′, 125′, 175′, 225′
  • For additional lengths, please contact us.
  • Field Services and Site Surveys available.
SKU: 990-15202-075 Category: Tags: , , , , ,


TimeProvider® 4100/S6xO Antenna Kit

Antenna = TW3370/TW3372 40dB Wideband GPS/GLONASS Antennas

This TimeProvider® 4100/S6x0 GPS antenna kit is comprised of a

  • TW3370/TW3372 high Gain (40dB – 26dB available – consult a Syncworks expert) GNSS antenna covering the GPS L1, GLONASS L1, and SBAS (WAAS, EGNOS & MSAS) frequency band (1575 to 1606 MHz). It features a patch element with a 40% wider bandwidth than previously available in this format. Unlike its competitors, both GPS-L1 and GLONASS signals are included in the 1dB received power bandwidth.
  • Cabling to your length of run can be special ordered, or you can choose from our incremental lengths.
  • Brackets and harnessing equipment also comes with the kit.

The TW3370/TW3372 has a three-stage Low Noise Amplifier with a mid-section SAW. A tight pre-filter s available with the TW3372 to protect against saturation by high-level sub-harmonics and L-Band signals making it particularly suitable for timing applications.

The TW3370/TW3372 has a 19mm (3/4 Inch) through a hole, permanent mount white-metal base, with an industrial-grade, IP67-compliant conical radome. Two options for pole mounting are available an L-bracket (P/N#23-0040-0) or a pipe mount (P/N#23-0065-0).

The TW3370 is a wideband antenna, covering GPS/QZSS L1, GLONASS G1, as well as SBAS (WAAS/EGNOS/MSAS).


  • Great axial ratio
  • Low noise LNA: 1 dB
  • High rejection SAW filter
  • High gain: 40 dB typ.
  • Low current: 20 mA typ.
  • ESD circuit protection: 15 kV
  • Wide voltage input range: 2.5 to 16 VDC
  • IP67, RoHS and REACH compliant


  • Excellent multipath rejection
  • High system accuracy
  • Excellent signal-to-noise ratio
  • Great out-of-band signal rejection
  • Performs well in harsh environments


Additional information

Weight 8 lbs
Dimensions 20 × 20 × 4 in
