TimeProvider 1100 Cards
$2,285.00 – $11,039.00
Data Sheet
Microchip TimeProvider 1100 Parts
090-58022-01 TP 1000 Rubidium IOC Card
090-58021-01 TP 1000 Quartz OIC Card
090-58041-01 TP 1000 IMC Card w integrated TPIU
All items listed are refurbished and come with our 90-warranty plus all software updates, if applicable.
Summary
The proliferation of high-speed data, broadband multimedia and circuit-to-packet convergence is rapidly driving the need for high quality synchronization outside the network core into metro and access. However, the synchronization economics and functional requirements of access nodes differ significantly from traditional core nodes. A reduced number of outputs, smaller footprint and lower cost points, while maintaining the PRS accuracy and SSU/BITS performance of a core office synchronization system, are still critical requirements for a small office synchronization solution. The Microchip TimeProvider 1100, or TP 1100 is ideally suited to meet this need.

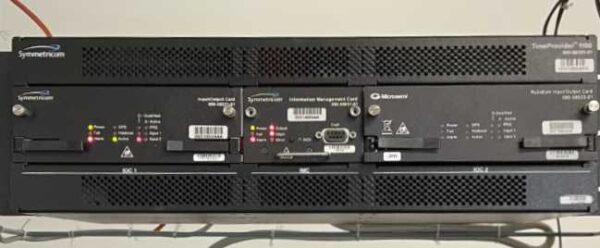

The TimeProvider’s innovative architecture combines the tasks of tracking incoming timing references, qualifying the signals, filtering and distributing precise synchronization onto a single universal Input, Output and Clock card (IOC). Available in rubidium and quartz versions, a second IOC card can be added to provide full input, clock redundancy and output protection. Local and remote provisioning and management of the and TimeProvider 1100 is performed through the Information Management Card (IMC).
Key Features/Part TP1100
• Best in class clock performance with BesTime and SmartClock technologies
• PRS with Type II/Stratum 2E and Type I/Stratum 3E holdover
• Universal input and output cards
• E1, 2.048MHz, T1, 1.544MHz, CC
• NTP server/client with MD5
authentication
• T1 span line retiming
• SNMP management
